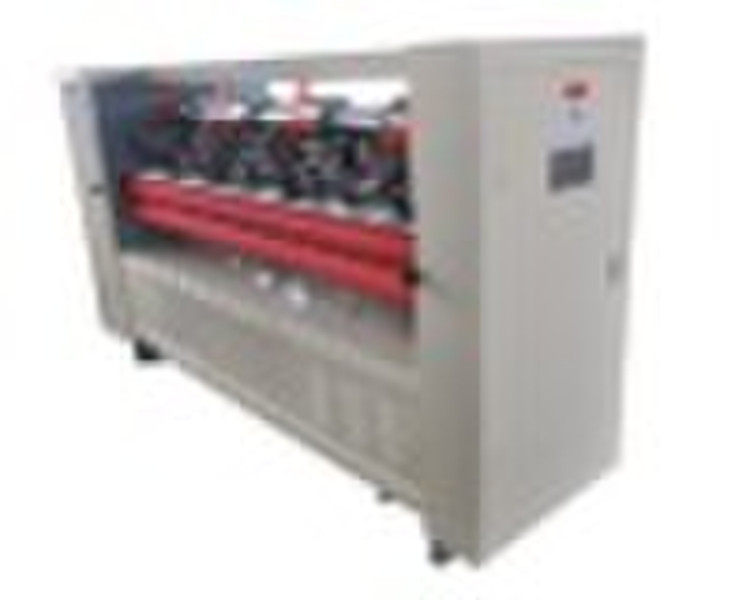

Thin Blade Slitting and Creasing Machine

Characteristics It adopts front-scoring feeding and back double runner roll leading paper. Paperboard runs steadily.Slitting part: adopt high quality tungsten steel blade, sharp and long working life, slice tidier, non-pressing and non-burr.Scoring part: adopt 5 points scoring, scoring distance in-phase adjustment, blazonry and easy to bend the carton sheet.Grinding part: adopt automatic and manual pneumatic grinding type. It can grind while working, which can improve working efficiency.Electric control lifting-down and correct error, easy to operate and suitable for different requirements.Adopt Chinese famous brand or imported electric element, dependable performance.Adopt electric adjust blade distances, pneumatic lock. Improve degree of automation, easy to operate and high precision, save time and labor. (Option)Main Technical Parameter Model VBSC2000 VBSC 2200 VBSC 2500 Overall Dimension (mm) 2600*750*1400 2900*750*1400 3200*750*1400 Power (kw) 3 4 4 Max. slitting width(mm) Inverse blade 1900 2200 2500 Positive blade 1800 2100 2400 Min. slitting width (mm) Inverse blade 305 Positive blade 140 Min. slitting length (mm) 435 Min. scoring width (mm) Inverse blade 30 Positive blade 80 Scoring height (mm) 0-10 Blade specification (mm) 200*122*1.2 Blade & scoring composed type Three blade four scoring/ four blade six scoring/five blades eight scoring
