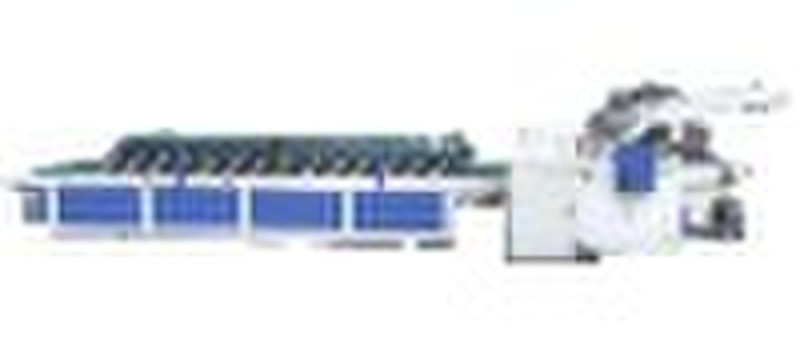

Semi-automatic Flute Laminating Machine

Characteristics This machine is suitable for both lamination of corrugated cardboard to paperboard and lamination of paperboard to paperboard. It is equipped with automatic feeding of bottom sheet and normal front feeding of top sheet. It is equipped with flexible front gauge positioning to control the laminating precision. It is characterized with steeples timing, novelty and beauty, easy operation and high laminating precision. It is new equipment for producing the high quality cardboard, which makes the cardboard nicer and have high intensity. It is widely used for packaging in food, wine, electric appliance and light industry. Technical parameter Model VFLS1100VFLS1300VFLS1450Max sheet size(mm) 1100x11001300x11001450x1100Min sheet size(mm) 360x360360x360360x360Speed(m/min) 0 650 650 65Total power(kw) 4.4.55 Working principle First the surface paper is fed manually to the front gauge positioning for orientation. Photo electricity switch starts up the vertical pump valve after receiving the signal and makes the bottom sheet to be absorbed to the belt. Electromagnetic clutch makes the bottom sheet feed automatically from the feeder. The bottom sheet will be oriented at front positioning together with the sheet after its gluing, then to open the positioning by the thrust which generated from the roller to the bottom sheet. The top sheet and bottom sheet will be conglutinated through the effect between lamination roller and press roller, then to be transmitted to the press part.
