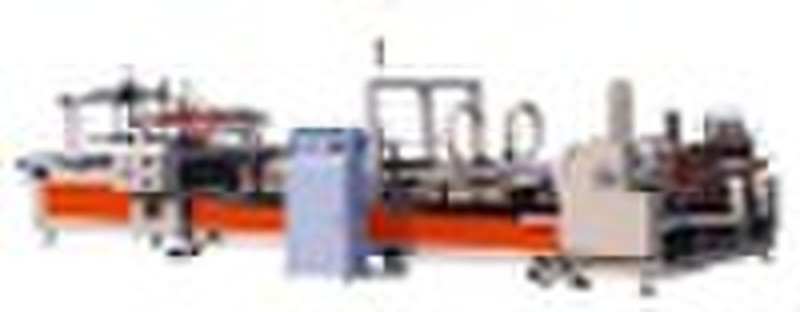

Automatic Folder Gluer

Applications and Characters 1. Automatic Paper Feeding, Folding & Gluing Parts Adopt frontal belt suction paper feeding, exact and reliable.Use High-rank electromagnetic clutch and brake system for separately controlled and easy operation.Height of line-press wheels are adjustable, suitable for thickness of 2 8mm.Linkage with the folding part, frequency conversion speed adjustment to achieve a speed of 0 120 m/min.Front baffle and conveyor belt can be left-right adjusted.Main drive uses frequency conversion speed adjustment with no noise, speed adjustment is flexible andstable.Adopting Italy conveyor belt of high friction for automatic delivery and folding.Stainless steel wheels for even gluing and can save glue.Equipped with paper board rectification device and creasing device.Belt of in congruous speed, stepless speed regulation, can greatly reduce the forfex error. 2. Automatic Count And Ejector Parts PLC control and touch screen, digital control with easy and reliable operation, date input without stopping the machine, photo electric inspection for automatic counting and precise outputting.Upper and lower belt to convey the paper boxes with rectifying function to keep the pile of boxes in order.Flap device to keep all sides neat for precise gluing without deciation.Count & ejector using pneumatic pattern, exact, fast and reliable.Height of pileup: 8 25 sheets.3. Control Panels Touch screen data input, Speed and data input etc can be changed even when machine is working. It is easily to operating.Main Specification ModelVFGA-2000VFGA-2600Max. Paper Size (mm)900×20001200×2600Min. Paper Size (mm)300×700300×900Speed (m/min)0 1200 120Power (kw)1220Install Area (mm)2600×100004500×14000Weight (kg)55006500
