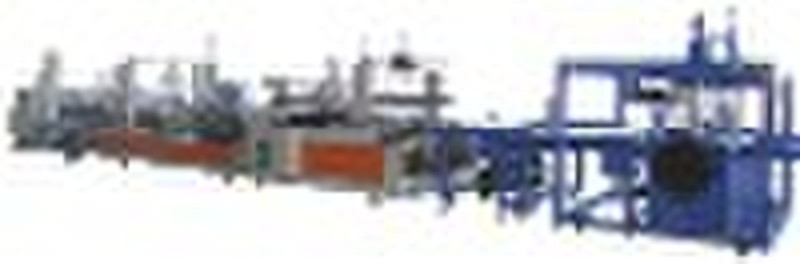

Automatic Folder Gluer And Strapping Machine

Applications and Characters VFGSA-2000,2600 automatic folder gluer and strapping machine is made of three parts: paper feeding, gluing and paper folding parts, automatic count and ejector parts automatic strapping device. The machine features frequency conversion speed adjustment, PLC control, touch screen data input and easy operation. The whole process is fully automatic from paper feeding, folding, counting, to ejecting and strapping. Small footprint, and greatly enhance work efficiency and product quality. Automatic Folder Gluer Machine Applications and Characters 1.Automatic Paper Feeding, Folding & Gluing Parts Adopt frontal belt suction paper feeding, exact and reliable.Use High-rank electromagnetic clutch and brake system for separately controlled and easy operation.Height of line-press wheels are adjustable, suitable for thickness of 2 8mm.Linkage with the folding part, frequency conversion speed adjustment to achieve a speed of 0 120 m/min.Front baffle and conveyor belt can be left-right adjusted.Main drive uses frequency conversion speed adjustment with no noise, speed adjustment is flexible and stable.Adopting Italy conveyor belt of high friction for automatic delivery and folding.Stainless steel wheels for even gluing and can save glue.Equipped with paper board rectification device and creasing device.Belt of in congruous speed, stepless speed regulation, can greatly reduce the forfex error.2. Automatic Count And Ejector Parts PLC control and touch screen, digital control with easy and reliable operation, date input without stopping the machine, photo electric inspection for automatic counting and precise outputting.Upper and lower belt to convey the paper boxes with rectifying function to keep the pile of boxes in order.Flap device to keep all sides neat for precise gluing without deciation.Count & ejector using pneumatic pattern, exact, fast and reliable.Height of pileup: 8 25 sheets.3. Control Panels Touch screen data input, Speed and data input etc can be changed even when machine is working. It is easily to operating. Main Specification Applications and Characters Automatic strapping part is made of 4 devices: rollers-driving table board, boxes flapping device and box-pressing tight device and automatic strapping device. Paper box will be conveyed to the roller-driving table board to turn the pile of boxes at the angle of 90°, and flap device will keep the pile neat and ready for tight pressing and bale up. The strapping pattern can be a line or two parallel lines. Main Specification Model VSPA-1000VSPA-1200Max. Strapping Size (mm)900×9801200×1200Min. Strapping Size(mm)400×300400×300Dimension(mm)3500×2500×22003500×2500×2200Worktable Height(mm)920±30Max. Speed8 10 piles/min (single line), 5 6 piles/min (double lines)NO. / Pile8 25 pieces/pileStrappingAutomatic pressing, all-round calibration, single or double line bundleBand SpecPET band (width: 9 12mm, thickness: 0.8 0.9mm)Total Air Consumption3 m3/hAir Source0.5 0.6 MpaTotal Power(kw)1.81.8 Model VFGA-2000VFGA-2600Max. Paper Size900×2000 mm1200×2600 mmMin. Paper Size300×700 mm300×900 mmSpeed0 120 m/min0 120 m/minPower12 kw20 kwInstall Area2600×10000 mm4500×14000 mmWeight5500 kg6500 kg Automatic Strapping parts
